A drone may look like a mechanical machine, but its real intelligence lives on the motherboard. Flight controllers, power-management circuits, sensors, communication modules, electronic speed controllers, and camera systems all depend on densely packed printed circuit boards. Robotics platforms are similar. A single damaged connector, failed capacitor, shorted power rail, or cracked solder joint can stop an otherwise valuable machine from working.

For hardware makers, this creates both an opportunity and a challenge. Board-level repair can save expensive assemblies that would otherwise be replaced, but it requires more than a basic screwdriver kit and standard soldering iron.

Drone and robotics motherboards are compact, heat-sensitive, and often covered with shields, adhesives, conformal coating, and tiny surface-mount components. Successful repair depends on controlled heat, clear magnification, reliable diagnostics, and safe handling.

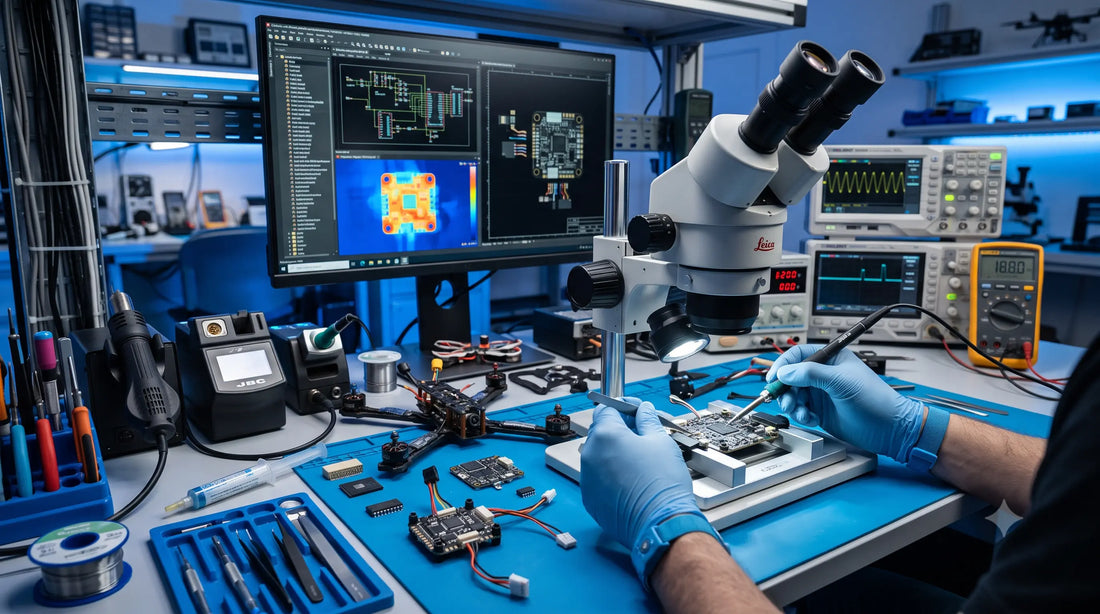

The following equipment checklist explains the tools that matter most when building a professional bench for drone and robotics motherboard repair. It also shows how each tool fits into a practical troubleshooting workflow.

Why Motherboard Repair Requires Specialized Equipment

Replacing a drone propeller, robotic arm, wheel, or external sensor is usually straightforward. Motherboard repair is different because the actual fault may be almost impossible to see.

A damaged drone may power on but fail to initialize its gimbal. A robot may appear completely dead even though only one protection component has shorted. In other cases, the board may work when cold and fail after a few minutes because a weak component becomes unstable as it heats up.

These problems cannot be solved through guesswork. A technician needs equipment that can reveal electrical behavior, identify the damaged area, and support accurate component-level work.

A properly equipped repair bench should cover four main tasks:

●        Visual inspection

●        Electrical diagnosis

●        Controlled soldering and rework

●        Post-repair testing

Tool quality also matters. Poor equipment may have unstable temperature control, inaccurate readings, weak optics, or unreliable construction. These problems can turn a repairable motherboard into an unusable one.

1. Precision Soldering Station

The soldering station is the central piece of equipment on a motherboard repair bench. Drone and robotics boards contain everything from tiny signal components to large power connectors and ground planes that absorb heat quickly.

A low-powered soldering iron may struggle to heat larger joints. An uncontrolled iron may do the opposite by overheating pads, traces, and nearby components.

A professional precision soldering station should heat quickly, maintain a stable temperature, and recover heat when it touches a large joint.

Fine soldering tips are useful for jumper wires, compact integrated circuits, tiny pads, and small surface-mount components. Larger tips transfer heat more effectively to battery terminals, shielding points, motor connectors, and ground pads.

Temperature presets are also useful. They allow technicians to move between delicate flex connectors, leaded solder, lead-free solder, and heavier power joints without manually adjusting the station each time.

The AIFEN A9HD model supports C115, C210, and C245-style tip options. It is listed with a maximum power rating of 180W and a temperature range of 100°C to 450°C. These options make it suitable for both detailed micro-soldering and larger joints that require stronger heat transfer.

When selecting a station, do not focus only on wattage. Tip availability, handle comfort, temperature stability, sleep mode, heating speed, and access to replacement parts are equally important.

2. Micro-Soldering Tools and Consumables

A soldering station cannot perform accurate repairs by itself. A complete collection of Micro-Soldering tools should include fine tweezers, solder wire, flux, solder wick, low-melt alloy, jumper wire, tip cleaner, and multiple soldering tip shapes.

Flux is particularly important because it helps solder flow evenly and limits oxidation during heating. Gel flux is often useful for motherboard repair because it remains close to the work area instead of spreading across the board.

Solder wick helps remove excess solder from pads. Low-melt alloy can make it easier to remove connectors, chips, and components with multiple soldered points. Fine jumper wire is needed when a trace or pad has been damaged.

Instead of replacing the entire motherboard, a skilled technician may restore continuity by connecting the damaged point to a nearby component terminal or test point. However, the connection must be electrically correct, mechanically secure, and properly insulated.

Useful micro-soldering supplies include:

●        Straight and curved ESD-safe tweezers

●        Fine solder wire

●        High-quality gel flux

●        Solder wick in several widths

●        Low-melt removal alloy

●        Enamelled jumper wire

●        Brass tip cleaner

●        Heat-resistant Kapton tape

●        UV-curable solder mask

●        Small chisel, bevel, knife, and conical tips

Matching the tip to the repair is more effective than simply increasing the temperature. A slightly larger tip with better contact often transfers heat faster and more safely than an extremely fine tip used at excessive heat.

3. Soldering Microscope

Many components on drone and robotics motherboards are too small to inspect accurately with the naked eye. Even when a solder joint appears acceptable, magnification may reveal a bridge, lifted pad, cracked capacitor, damaged trace, bent connector pin, or incomplete solder connection.

A professional Soldering Microscope provides a clear view of the repair area and allows the technician to position tools accurately.

Stereo optics are especially valuable because they provide depth perception. This makes it easier to judge the distance between the soldering tip, component, and motherboard.

A trinocular microscope includes an additional camera connection. This can be useful for recording repairs, training technicians, sharing live repair work, documenting motherboard condition, or requesting remote assistance from another specialist.

Working distance is just as important as magnification. A microscope may provide a sharp image, but it will still be difficult to use if there is not enough space for the soldering iron, tweezers, hot-air nozzle, and technician’s hands.

The linked 2UUL MC7060-A1 is described as a trinocular stereo microscope with 7X to 60X magnification, continuous zoom, adjustable LED lighting, wide-field eyepieces, and camera connectivity. Its optional 0.5X lens is intended to increase the working distance for micro-soldering tasks.

A microscope should not be viewed as an optional luxury. It improves inspection before the repair, accuracy during soldering, and quality control after the work is completed.

4. Hot-Air Rework Station

A hot-air rework station is required for removing and installing surface-mount components that cannot be handled efficiently with a soldering iron alone.

Common examples include:

●        Power-management integrated circuits

●        MOSFETs

●        Voltage regulators

●        Small processors

●        Connectors

●        Shielded modules

●        Electronic speed controller components

●        Communication chips

A useful hot-air station should provide stable temperature, adjustable airflow, and different nozzle sizes.

Excessive airflow can move nearby resistors and capacitors. Excessive temperature can damage sensors, plastic connectors, adhesives, and the internal structure of a multilayer PCB.

The purpose is not to apply as much heat as possible. The objective is to heat the target component evenly while protecting the surrounding area.

Kapton tape and heat-resistant shields can protect nearby connectors and components. However, protective tape cannot compensate for poor airflow control or incorrect temperature settings.

Hardware makers should also understand the location of sensitive components before applying hot air. Inertial measurement units, camera sensors, microphones, pressure sensors, and radio-frequency components may be affected by unnecessary heat.

5. PCB Preheater

A motherboard preheater warms the PCB from below before concentrated heat is applied from above. This can make component removal safer and more controlled.

Drone power boards and robotics controllers often contain large copper ground planes. These areas pull heat away from the solder joint, forcing the technician to use more hot air or a higher soldering temperature.

Preheating reduces the temperature difference between the repair area and the rest of the board. As a result, the technician can use less aggressive top heat.

A preheater is especially helpful when working on:

●        Thick multilayer boards

●        Large ground pads

●        Shielded power sections

●        Battery connectors

●        Motor-control circuits

●        Large integrated circuits

●        Boards with extensive copper planes

The board should be heated gradually. Fast or uneven temperature changes can cause warping and place stress on solder joints or internal PCB layers.

A temperature probe or thermocouple can help monitor the board instead of relying only on the temperature displayed by the preheater.

6. Thermal Camera Diagnostic Tool

Electrical faults frequently produce heat. A shorted capacitor, damaged voltage regulator, failing MOSFET, or overloaded component may warm faster than the rest of the motherboard.

The temperature difference may be too small or too localized to detect safely by touching the board.

A Thermal Camera Diagnostic Tool allows the technician to observe temperature patterns across the PCB. When the motherboard is powered through a current-limited supply, the camera can reveal which component or section begins heating abnormally.

This can greatly reduce diagnostic time. Instead of testing every component around a power rail, the technician can focus on the area showing unusual thermal activity.

Thermal imaging is also valuable for intermittent faults. A regulator may behave normally when first powered but become unstable as its temperature increases. The technician can monitor the board over time and compare the temperature of similar components.

The WXY P30R Pro is listed with a 256 by 192 thermal sensor, a 9.6mm germanium lens, and support for iOS, Android, and Windows devices. Its listed applications include finding motherboard temperature anomalies, leakage points, and possible short-circuit components.

However, the hottest component is not automatically the failed component. It may be heating because another part of the circuit is causing it to draw excessive current.

Thermal results should always be supported by resistance measurements, diode-mode readings, voltage checks, current analysis, and an understanding of the circuit.

7. Digital Multimeter

A digital multimeter is usually the first diagnostic instrument used in motherboard repair. It can measure voltage, resistance, continuity, and diode behavior.

These functions help answer important questions:

●        Is input power reaching the board?

●        Is a fuse open?

●        Is a power rail shorted to ground?

●        Is a connector pin connected to its destination?

●        Is a diode or MOSFET junction behaving abnormally?

●        Is the expected voltage present at a regulator output?

For motherboard work, the multimeter should have sharp probes and a fast continuity response. Fine probe tips allow the technician to contact tiny pads and test points without slipping into nearby components.

Needle probes and micro-grabbers can also be useful when testing crowded boards.

Before powering the motherboard, resistance-to-ground and diode-mode measurements can identify suspicious power rails. If a working board of the same model is available, comparing readings between the damaged and functional boards can make diagnosis easier.

Technicians should remember that low resistance is normal on certain processor and core-voltage rails. A low reading should be investigated, but it should not automatically be treated as a short circuit.

8. Current-Limited DC Bench Power Supply

A bench power supply allows a technician to power a motherboard without using the drone or robot’s original battery. More importantly, it provides current limiting.

Current limiting protects the board during diagnosis. If a short circuit is present, the supply can stop the current from rising to a dangerous level.

The way the motherboard draws current can also provide valuable clues.

A board that immediately reaches the current limit may contain a direct short. A board that draws almost no current may have an open input path, damaged fuse, broken power switch, or failed startup circuit. A pulsing current pattern may indicate repeated boot attempts.

Always confirm the correct voltage and polarity before connecting the board. Begin with a conservative current limit and increase it only when the repair procedure requires it.

Purpose-built power cables or safe breakout fixtures can reduce the risk of a reverse connection. A smoke stopper or resettable protection device may also provide additional safety after a major repair.

Some drone and robotics motherboards require communication with batteries, sensors, or other modules before they can start normally. For this reason, bench power behavior should be evaluated together with the device’s design.

9. Oscilloscope and Logic Analyzer

A multimeter displays average or static electrical values. It cannot show signals that change rapidly.

An oscilloscope allows technicians to examine waveforms, voltage ripple, clock activity, power sequencing, motor-control signals, and communication lines.

For example, a voltage rail may appear normal on a multimeter but contain excessive ripple that causes the processor to restart. A sensor bus may show the correct idle voltage while carrying no valid data. An ESC control signal may be present but distorted.

These problems become visible only when the signal is observed over time.

A logic analyzer is useful for examining digital communication protocols such as I2C, SPI, and UART. These protocols are commonly used between processors, sensors, memory chips, motor controllers, and peripheral modules.

A logic analyzer can help determine whether communication is taking place or whether a data line remains stuck in one state.

These instruments require careful handling. Incorrect grounding or probe placement can damage low-voltage circuits. Technicians should understand the expected signal and voltage level before connecting a probe.

10. ESD Protection Equipment

Static electricity can damage sensitive electronic components without producing a visible spark. This is particularly important when handling processors, memory chips, sensors, radio components, and exposed connectors.

A professional repair bench should include:

●        Grounded ESD mat

●        ESD wrist strap

●        ESD-safe tweezers

●        Anti-static component trays

●        ESD-safe brushes

●        Protective bags for removed boards

The mat creates a controlled work area for the motherboard and removed components. It should remain clean and free from loose solder, wire fragments, screws, and metal debris.

Magnetic trays can be used for screws and mechanical hardware, but they should be kept away from magnetometers and other magnetic-field-sensitive components.

LiPo batteries must be disconnected before motherboard repair. Damaged, swollen, punctured, or overheated batteries should be handled according to appropriate battery safety procedures and stored in fire-resistant containers.

11. PCB Holder and Board Fixtures

A motherboard must remain stable while it is being inspected or repaired. Movement under a microscope can cause the soldering iron or tweezers to strike nearby components.

A good PCB holder secures the board without placing excessive pressure on delicate edges, connectors, or components. It should also provide access to the repair area from different angles.

Adjustable fixtures are particularly useful when working with irregularly shaped drone boards or stacked robotics controllers. Some repairs require access to both sides of the board, so the fixture should allow the PCB to be rotated or repositioned easily.

When using hot air, confirm that the holder will not expand, soften, or transfer excessive heat into the board.

12. Cleaning and Inspection Supplies

Cleaning is part of the repair process, not merely a cosmetic step. Flux residue, dust, corrosion, and loose debris can hide damaged joints or create electrical leakage.

A professional cleaning kit should contain:

●        High-purity isopropyl alcohol

●        Lint-free wipes

●        ESD-safe brushes

●        Controlled dispensing bottles

●        Fine cleaning swabs

●        Air blower

●        UV inspection light

After soldering, clean the repair area and inspect it again under the microscope. A joint that looked correct while covered in flux may reveal a bridge or incomplete connection after cleaning.

A UV light can help locate certain types of conformal coating, contamination, and cured solder mask.

For trace repair, technicians may also use a fiberglass pen or fine grinding tool to expose copper. These tools must be used carefully. Removing too much material can weaken the board, damage nearby traces, or reach an internal layer.

13. Fume Extraction and Workbench Safety

Soldering fumes should not be allowed to collect around the technician’s face. A local fume extractor captures smoke close to the soldering area and helps maintain a cleaner working environment.

The workbench should also have bright lighting, good ventilation, and enough space to separate diagnostic equipment from hot tools.

Hot-air handles and soldering irons must always be returned to heat-resistant holders. Solvents should be kept away from hot equipment, and damaged batteries should never remain on the main repair bench.

Good organization improves accuracy. When tools, removed components, screws, and replacement parts have assigned locations, the technician is less likely to lose hardware or install the wrong part.

A Practical Motherboard Repair Workflow

Having professional tools is only useful when they are applied in the correct order.

Begin with a visual inspection under the microscope. Look for impact damage, corrosion, burnt areas, broken connectors, cracked inductors, missing components, damaged flex sockets, and signs of previous repair work.

Next, disconnect the battery and test important power rails for shorts or unusual resistance. Check input protection components, fuses, connectors, and major power paths.

If no dangerous short is found, connect the motherboard to a current-limited power supply. Observe the current draw and note whether it is stable, excessive, absent, or pulsing.

Use the thermal camera to identify abnormal heating. Confirm suspicious components with the multimeter and, where necessary, the oscilloscope.

Do not remove a component simply because it becomes warm. Determine what the component does and why it may be drawing current.

Once the fault has been isolated, secure the board in a holder and protect nearby components. Select the correct soldering tip, hot-air nozzle, temperature, and airflow.

After replacing or repairing the component, clean the area and inspect it under the microscope. Test continuity and resistance before reconnecting power.

Finally, install the motherboard in the complete drone or robotics system. Test the motors, sensors, communication modules, cameras, charging functions, power systems, and firmware.

A motherboard repair is not complete until the machine operates normally without abnormal heat, current draw, warning messages, or unstable behavior.

Common Repair Mistakes to Avoid

One of the most common mistakes is using excessive heat. A high temperature may appear to make the repair faster, but it can lift pads, damage plastic connectors, weaken adhesive, and place stress on internal PCB layers.

Better heat transfer, suitable tip size, quality flux, and proper preheating are safer than simply increasing the temperature.

Another mistake is replacing components without completing a diagnosis. Random component replacement wastes time and may introduce additional faults. Measure first and replace parts only when the evidence supports the decision.

Technicians should also avoid powering a board immediately after soldering. The repaired area must first be cleaned and tested for bridges, shorts, and incorrect connections.

Poor documentation is another problem. Photographing the board before disassembly helps record shield positions, connector orientation, cable routing, screw placement, and component condition.

Repair notes should include current readings, resistance measurements, replaced components, and test results. This information can be extremely useful if the same fault returns.

Frequently Asked Questions

What should I check when searching for a precision soldering staition?

The phrase “precision soldering staition” is a common misspelling of precision soldering station. When selecting one, check its temperature stability, heating speed, power recovery, supported tip families, handle comfort, sleep functions, and replacement-tip availability.

Choose a station that can handle both fine signal work and larger power connections.

Are Micro-Soldering tools necessary for beginners?

Yes, although beginners do not need to purchase every advanced tool immediately.

A practical beginner setup includes a dependable soldering station, stereo microscope, fine tweezers, flux, solder wick, multimeter, ESD mat, PCB holder, and cleaning supplies.

Hot-air equipment, thermal imaging, preheaters, oscilloscopes, and logic analyzers can be added as repair skills improve.

Can a thermal camera identify every short circuit?

No. A thermal camera can reveal abnormal heating, but some shorts do not create a visible hotspot at a safe current level.

In some cases, the component that becomes hot is not the cause of the fault. It may be receiving excessive current because another component has failed.

Thermal imaging should always be combined with electrical measurements.

Is a microscope necessary if I already have a high-resolution camera?

A camera is useful for recording and displaying repair work, but stereo microscope optics normally provide better depth perception for hand soldering.

A trinocular microscope provides both options. The technician can work through the eyepieces while using the camera connection for documentation or training.

When should a motherboard be replaced instead of repaired?

Replacement may be more practical when the PCB is severely cracked, multiple internal layers are damaged, extensive corrosion has spread under several components, or an essential chip is unavailable.

Replacement should also be considered when the repair cost exceeds the value of the motherboard or when the board cannot be restored to a safe condition.

Build a Bench That Supports Better Repairs

Drone and robotics motherboard repair requires patience, controlled workmanship, and evidence-based diagnosis. The correct tools do not replace technical knowledge, but they allow that knowledge to be applied much more effectively.

A stable soldering station, dependable Micro-Soldering tools, clear microscope optics, thermal diagnostics, accurate electrical instruments, secure board fixtures, and proper ESD protection form the foundation of a professional repair bench.

Start with the equipment needed for safe inspection, measurement, and soldering. Expand the setup as projects become more advanced.

A carefully planned workstation helps hardware makers repair valuable motherboards, reduce unnecessary component replacement, and approach complex electronic faults with greater confidence.
