Raspberry Pi Zero 2 W: Complete Guide to Features, Specs, Uses & Projects

Table of Content

• What Is Raspberry Pi Zero 2 W?

• What Can You Do With Raspberry Pi Zero 2 W?

• Raspberry Pi Zero 2 W vs Raspberry Pi Zero W

• How to Get Started With Raspberry Pi Zero 2 W

• Advantages and Limitations

• Is Raspberry Pi Zero 2 W Good for Beginners?

• Frequently Asked Questions
• Conclusion

The Raspberry Pi Zero 2 W is a compact, affordable single-board computer designed for projects where size, power consumption, and wireless connectivity matter. Despite its small form factor, it offers significantly more processing capability than the original Raspberry Pi Zero, making it suitable for IoT devices, robotics, automation, smart-home projects, portable computers, and lightweight servers.

Built around a quad-core 64-bit ARM processor and equipped with Wi-Fi and Bluetooth, the raspberry pi zero 2 w provides many of the capabilities developers expect from a modern Raspberry Pi in a remarkably small board.

What Is Raspberry Pi Zero 2 W?

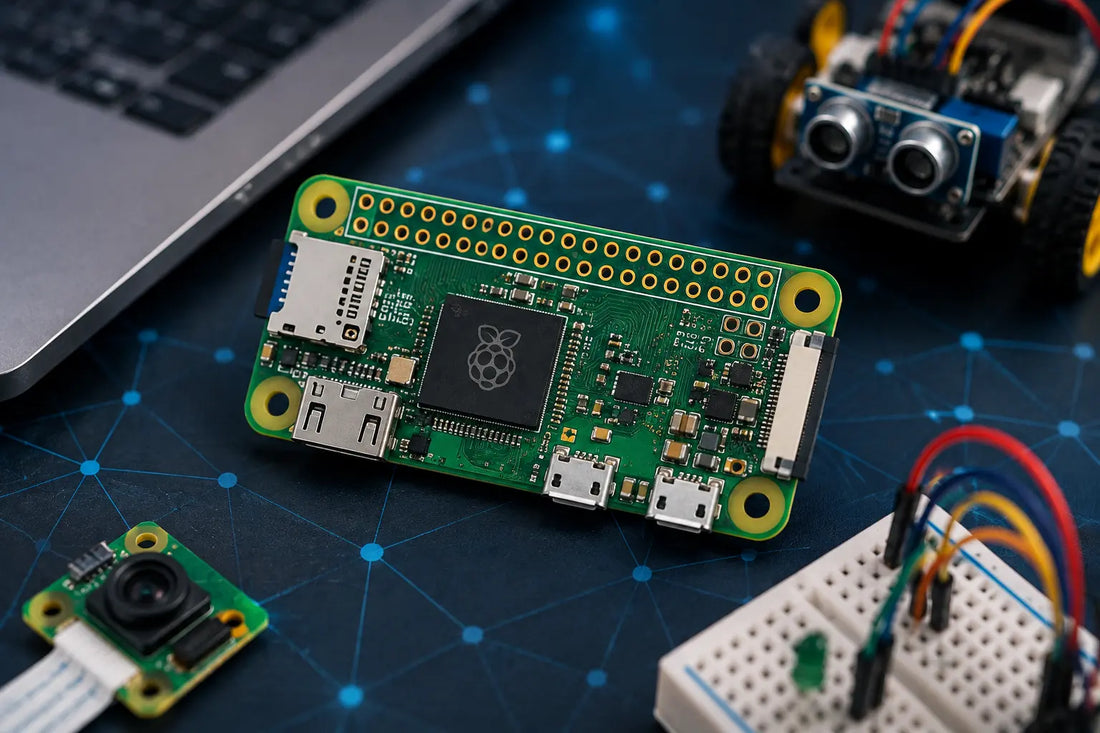

The Raspberry Pi Zero 2 W is a small single-board computer from the Raspberry Pi family. It was introduced as a more powerful successor to the original Raspberry Pi Zero W while maintaining the same compact Zero form factor.

Its major improvement is the quad-core Broadcom BCM2710A1 processor, which is based on the ARM Cortex-A53 architecture and operates at up to 1GHz. The board also includes 512MB of LPDDR2 SDRAM.

The "W" in its name indicates wireless connectivity. The board supports 2.4GHz 802.11 b/g/n Wi-Fi and Bluetooth 4.2/Bluetooth Low Energy, allowing it to communicate with networks, sensors, smartphones, and other wireless devices without requiring an external wireless adapter.

Its small size makes it particularly useful for embedded applications where conventional computers or larger development boards may not fit.

What Can You Do With Raspberry Pi Zero 2 W?

The raspberry pi zero 2 w can be used for a wide range of applications. Its capabilities are especially valuable for projects that need a Linux-based computer in a small physical package.

1. Build IoT Devices

IoT is one of the strongest use cases for the Raspberry Pi Zero 2 W. Its built-in Wi-Fi allows it to connect sensors and devices to a local network or cloud service.

2. Create Compact Robotics Projects

The board is also useful in robotics because it combines computing, wireless communication, and GPIO control in a small package. A robot built with the raspberry pi zero 2 w could use sensors to detect obstacles, communicate wirelessly with a controller, and process commands locally.

It can be paired with motor drivers, ultrasonic sensors, servos, cameras, LEDs, and other robotics components. For more demanding computer-vision or AI workloads, however, developers may need a more powerful Raspberry Pi or an external accelerator.

3. Make a Portable Computer

With a small display, keyboard, battery pack, and suitable case, the Raspberry Pi Zero 2 W can become a compact portable computer.

4. Build a Networked Camera

The CSI camera interface and wireless connectivity make the board suitable for compact camera projects. A camera connected to the board can potentially be used for:

●       Remote monitoring

●       Time-lapse photography

●       Wildlife observation

●       Security prototypes

●       Motion detection

●       Robotics vision

5. Develop Smart Displays and Digital Signage

The board can also power simple digital displays. Developers can connect a suitable screen and configure the system to display dashboards, announcements, schedules, sensor readings, or web content. Because the board is compact, it can be installed inside small enclosures where a conventional computer would be impractical.

Raspberry Pi Zero 2 W vs Raspberry Pi Zero W

The Raspberry Pi Zero 2 W was designed as a substantial performance upgrade over the original Raspberry Pi Zero W. The most important difference is processing power. The original Zero W used a single-core processor, whereas the Zero 2 W uses a quad-core 64-bit Cortex-A53 processor.

This improvement can make a noticeable difference when running multitasking applications, network services, scripts, and more computationally demanding projects. The Zero 2 W retains the compact physical dimensions of the Zero family, meaning developers can often use similar project designs and enclosures. However, upgrading from the original Zero W should not be viewed as simply increasing CPU speed. The Zero 2 W provides a more capable computing platform while still being constrained by its 512MB RAM and compact hardware design.

How to Get Started With Raspberry Pi Zero 2 W

Getting started with the raspberry pi zero 2 w requires only a few essential components.

Step 1: Prepare a microSD Card

The Raspberry Pi operating system is normally installed on a microSD card. Use the official Raspberry Pi Imager to prepare the card with a compatible operating system.

Step 2: Connect the Hardware

Depending on your project, you may need:

●       Raspberry Pi Zero 2 W

●       microSD card

●       Suitable 5V power supply

●       Mini HDMI adapter or cable

●       USB OTG adapter

●       Keyboard and mouse

●       GPIO components

●       Camera or display, if required

Step 3: Configure the Operating System

After installing the operating system, configure your network connection and update the system packages. For headless projects, SSH can allow you to manage the Raspberry Pi remotely without connecting a monitor and keyboard.

Step 4: Connect Your Components

Once the operating system is ready, connect sensors, displays, cameras, or other components according to their electrical and software requirements. Always check voltage and current requirements before connecting electronic components directly to GPIO pins.

Step 5: Start Building

Python is a popular programming language for Raspberry Pi projects. You can use it to interact with GPIO-connected hardware, read sensors, communicate over networks, and automate tasks.

Advantages and Limitations

The raspberry pi zero 2 w has several advantages, but it is not designed for every type of workload.

Advantages

●       Very compact form factor

●       Quad-core 64-bit processor

●       Built-in Wi-Fi

●       Built-in Bluetooth

●       GPIO support

●       Camera interface

●       Linux compatibility

●       Low power requirements

●       Suitable for IoT and robotics

●       Large Raspberry Pi software and maker ecosystem

Limitations

●       Only 512MB RAM

●       Limited USB connectivity

●       No full-size HDMI port

●       Requires adapters for some peripherals

●       Not ideal for demanding desktop applications

●       Advanced AI and computer-vision workloads may require additional hardware

Is Raspberry Pi Zero 2 W Good for Beginners?

Yes. The raspberry pi zero 2 w can be a good learning platform for beginners, particularly for people interested in programming, electronics, IoT, and robotics.

Its small size makes it easy to incorporate into projects, while its Linux operating system provides an opportunity to learn concepts that go beyond basic microcontroller programming.

Frequently Asked Questions

What is Raspberry Pi Zero 2 W used for?

The raspberry pi zero 2 w is commonly used for IoT devices, robotics, automation, wireless sensors, portable computers, camera projects, network services, and embedded applications.

Does Raspberry Pi Zero 2 W have Wi-Fi?

Yes. It includes 2.4GHz 802.11 b/g/n wireless LAN, along with Bluetooth 4.2 and Bluetooth Low Energy.

How much RAM does Raspberry Pi Zero 2 W have?

The Raspberry Pi Zero 2 W has 512MB of LPDDR2 SDRAM.

Can Raspberry Pi Zero 2 W run Linux?

Yes. It is designed to run Raspberry Pi OS and other compatible Linux-based operating systems.

Is Raspberry Pi Zero 2 W suitable for robotics?

Yes. Its GPIO interface, compact size, wireless connectivity, and Linux environment make it suitable for many robotics projects. For advanced AI or intensive computer-vision applications, additional processing hardware or a more powerful Raspberry Pi may be necessary.

Can Raspberry Pi Zero 2 W be used for IoT?

Yes. Its wireless connectivity and GPIO interface make it particularly useful for connected sensors, automation systems, remote monitoring, and other IoT applications.

Conclusion

The raspberry pi zero 2 w combines a compact design with considerably more processing capability than the original Raspberry Pi Zero W. Its quad-core processor, wireless connectivity, GPIO interface, camera support, and Linux ecosystem make it a versatile platform for makers, students, developers, and robotics enthusiasts.

Its greatest strength is not raw computing performance but the balance between size, connectivity, power consumption, and programmability. Whether you are building a small IoT sensor, wireless robot, camera system, smart-home controller, or educational electronics project, the Raspberry Pi Zero 2 W can provide a capable foundation without taking up much physical space.
