Arduino boards have become a popular starting point for learning electronics, programming, robotics, and embedded systems. One of the first things beginners encounter when working with an Arduino is its collection of pins. These pins allow the board to communicate with sensors, LEDs, motors, displays, buttons, and many other electronic components.

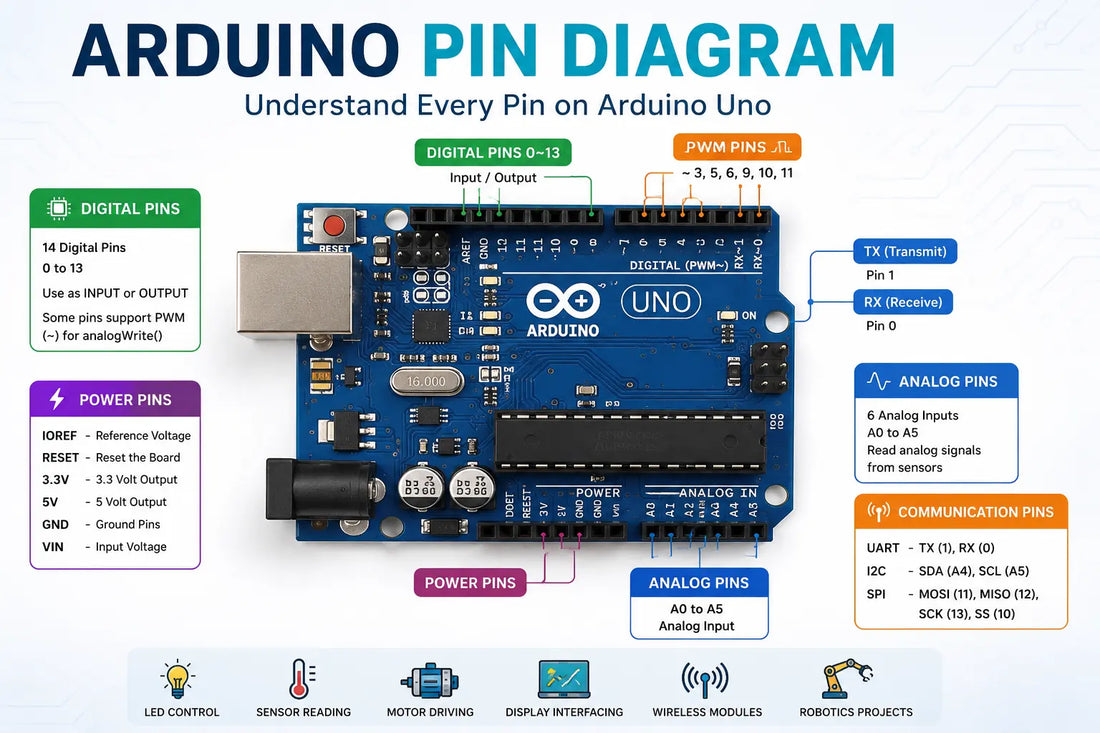

An Arduino pin diagram provides a visual guide to these connections. It shows where different pins are located on the board and explains what each pin can do. Understanding the diagram makes it easier to connect components correctly and write programs that interact with them. Among the many Arduino boards available, the Arduino Uno is one of the most widely used boards for beginners. Its straightforward layout makes the Arduino Uno pin diagram particularly useful when learning how digital, analog, power, and communication connections work.

What Is an Arduino Pin Diagram?

An Arduino pin diagram is a visual representation of the pins available on an Arduino board. Each pin has a specific purpose, although some pins can perform more than one function depending on how they are programmed. For example, an Arduino Uno includes digital input/output pins, analog input pins, power connections, and communication-related pins. The diagram helps users identify these pins before connecting external components. A pin can generally be thought of as a connection point between the Arduino's microcontroller and an external circuit. When programmed as an output, a digital pin can provide a signal to another component. When configured as an input, it can receive information from a button, sensor, or other device.

This makes the pin diagram an important reference when building an Arduino project. Instead of guessing where a component should be connected, users can refer to the diagram and determine which pin is appropriate.

Understanding the Arduino Uno Pin Diagram

The Arduino Uno is based on the ATmega328P microcontroller and provides a combination of digital and analog connections along with power and communication interfaces. The Arduino Uno pin diagram can initially look complicated, but the pins become easier to understand when grouped according to their functions.

1.    Digital Pins

The Arduino Uno provides 14 digital input/output pins, numbered 0 through 13. These pins can be programmed to read digital signals or produce digital outputs. A digital signal generally has two basic states: HIGH and LOW. For example, a push button can be connected to a digital input so the Arduino can determine whether the button is pressed. Similarly, an LED can be connected to a digital output so the Arduino can control whether it is turned on or off.

In Arduino programming, functions such as pinMode(), digitalRead(), and digitalWrite() are commonly used when working with digital pins. For example, a simple project could configure a pin as an output and use it to control an LED. Another pin could be configured as an input to detect a button press. Digital pins therefore provide the basic interface through which an Arduino can interact with many external electronic components.

2.    PWM Pins

Some of the Arduino Uno's digital pins also support Pulse Width Modulation (PWM). These pins are marked with a ~ symbol on the board.

On the Uno, PWM is available on digital pins 3, 5, 6, 9, 10, and 11.

PWM allows a digital output to simulate different levels of power by rapidly switching the signal between HIGH and LOW. This technique can be useful for applications such as controlling LED brightness or adjusting the speed of certain DC motors through an appropriate driver circuit.

For instance, rather than simply turning an LED fully on or fully off, PWM can be used to create different apparent brightness levels. It is important to understand that PWM is not the same as a true analog voltage output. The Arduino is rapidly switching the digital signal, and the resulting behavior of the connected circuit creates the desired effect.

Analog Input Pins

The Arduino Uno has six analog input pins, labeled A0 through A5. These pins are designed to measure varying electrical signals from analog sensors. While digital input generally distinguishes between HIGH and LOW, an analog input can measure a range of voltage levels. This makes analog pins useful for components such as potentiometers, light sensors, temperature sensors, and other devices that produce changing electrical signals.

The Arduino Uno's analog-to-digital converter allows the microcontroller to convert the incoming analog voltage into a digital value that the program can process. For example, a light sensor can produce a changing voltage depending on the amount of light detected. The Arduino can read that value and use it to determine whether an environment is bright or dark.

Power Pins

The Arduino Uno also includes several pins used for supplying or receiving power. The 5V pin can provide a regulated 5-volt supply from the board, while the 3.3V pin provides a lower-voltage supply. There are also GND pins, which provide the common ground connection required by circuits. The VIN pin can be used as an input for an external power source under appropriate conditions. The board also has a reset pin that can be used to reset the microcontroller. Understanding power and ground connections is extremely important when working with Arduino. Connecting a component to the wrong voltage can damage the component or the board.

What Are Pins 0 and 1 Used For?

Digital pins 0 (RX) and 1 (TX) have an additional role because they are used for serial communication. RX stands for Receive, while TX stands for Transmit. These pins allow the Arduino to communicate serially with other devices and are also associated with communication through the board's USB connection. Because these pins are used for serial communication, beginners should be careful when using them for other purposes, especially when uploading programs or communicating with a computer. For many simple projects, it is often convenient to use other available digital pins when possible.

What Are the SPI and I2C Connections?

The Arduino Uno can communicate with other electronic devices using communication protocols such as SPI and I2C.

●       SPI communication is associated with pins 10, 11, 12, and 13 on the Uno. These pins can be used to communicate with compatible devices such as certain displays, memory devices, and sensors.

●       I2C uses the A4 and A5 pins on the Arduino Uno. A4 functions as SDA, while A5 functions as SCL. These connections allow the Arduino to communicate with multiple compatible devices using a relatively small number of connections.

●       This demonstrates an important feature of Arduino pins: one physical pin can have multiple possible functions. The function being used depends on the hardware and the program.

How Does an Arduino Pin Work?

The easiest way to understand an Arduino pin is to think of it as an interface between the microcontroller and the outside world.

●       Suppose you connect a push button to a digital pin. The program can configure that pin as an input and repeatedly check its electrical state. When the button is pressed, the circuit changes the signal received by the Arduino. The program can then respond by turning on an LED, activating a buzzer, or performing another task.

●       Now consider a sensor. Instead of simply detecting HIGH or LOW, an analog sensor may provide a continuously changing voltage. The Arduino reads that voltage through an analog input and converts it into a value that the program can use.

●       The opposite happens with an output. The Arduino program generates a signal through a digital pin, and an external component responds to that signal.

How to Read an Arduino Pin Diagram

When looking at an Arduino pin diagram, beginners should first identify what type of connection they need.

●       If the project requires a simple ON/OFF signal, a digital pin may be appropriate. If a sensor produces a varying voltage, an analog input may be required. If LED brightness or a motor controller needs PWM control, a PWM-capable digital pin may be useful.

●       Next, check the power requirements of the component. Determine whether it requires 5V, 3.3V, or another supply and make sure the circuit is designed accordingly.

●       You should also identify the ground connection. Most Arduino circuits require the Arduino and the connected component to share a common ground.

●       Finally, check whether the chosen pins have special functions that your project needs. For example, pins used for serial, SPI, or I2C communication may need to remain available if your project uses those communication methods.

Reading the diagram before connecting the circuit can prevent many common wiring mistakes.

Why Is the Arduino Pin Diagram Important?

The Arduino pin diagram is more than a reference image. It helps users understand how the board communicates with electronic components.

●       For students, it provides a practical introduction to electronics. Instead of learning programming separately from hardware, they can see how a line of code can change the behavior of a physical component.

●       For robotics projects, understanding the pin layout is particularly important. A robot may use multiple sensors, motors, LEDs, and communication modules at the same time. Knowing which pins are available and what functions they support makes it easier to plan the circuit.

●       The diagram also becomes increasingly useful as projects become more complex. Beginners may initially connect only an LED and button, while advanced projects can involve displays, motor drivers, sensors, wireless modules, and other peripherals.

Frequently Asked Questions

How many digital pins does Arduino Uno have?

The Arduino Uno has 14 digital input/output pins, numbered 0 through 13.

How many analog pins are available on Arduino Uno?

The Arduino Uno provides six analog input pins, labeled A0 through A5.

Which Arduino Uno pins support PWM?

Pins 3, 5, 6, 9, 10, and 11 support PWM functionality.

What are Arduino pins 0 and 1 used for?

Pins 0 and 1 are associated with serial communication. Pin 0 is RX, or receive, and pin 1 is TX, or transmit.

Can Arduino pins power motors directly?

Generally, motors should not be powered directly from Arduino I/O pins because motors can require more current than an I/O pin is designed to provide. A suitable motor driver or transistor-based circuit is normally required.

Conclusion

Understanding an Arduino pin diagram is one of the most useful skills for anyone beginning with Arduino electronics. The diagram shows how the board's digital, analog, power, PWM, and communication connections can be used in different projects. The Arduino Uno makes this learning process relatively straightforward because its pins are clearly labeled and support a range of functions. Once you understand the difference between digital and analog inputs, outputs, PWM, power connections, and communication pins, you can begin designing circuits with greater confidence. Whether you are building a basic LED project, reading data from a sensor, controlling a robotic system, or developing a more advanced electronics project, the Arduino Uno pin diagram provides the foundation for connecting your hardware correctly and making your code interact with the physical world.
