APDS 9960 RGB And Gesture Sensor

APDS 9960 RGB And Gesture Sensor

APDS9960 | RGB Gesture | Sensor Detection

Rs. 299.00
Rs. 449.00 Rs. 299.00
33% OFF Sold out
Taxes included. Shipping calculated at checkout.
  • Free Shipping
  • Safe for Kids | RC Car Toys for kidsSafe For Kids
  • 100% Secured Online PaymentSecured Payment

Product Description

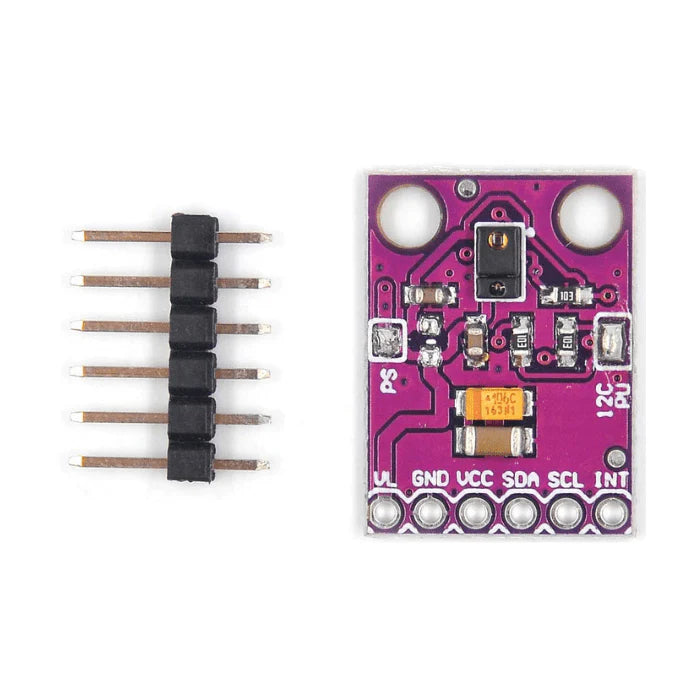

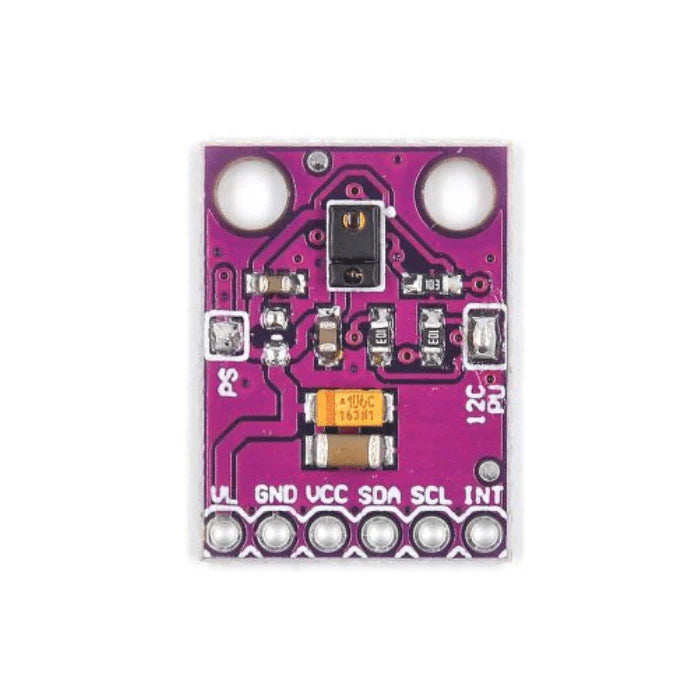

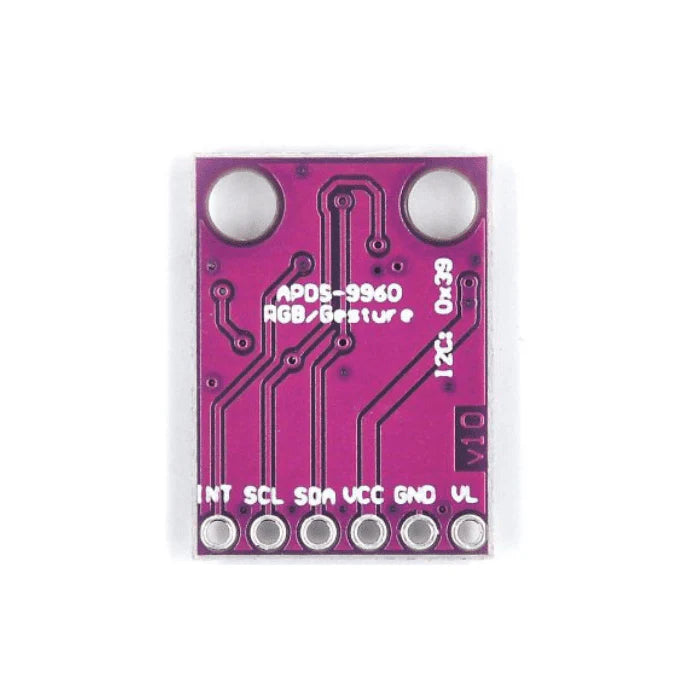

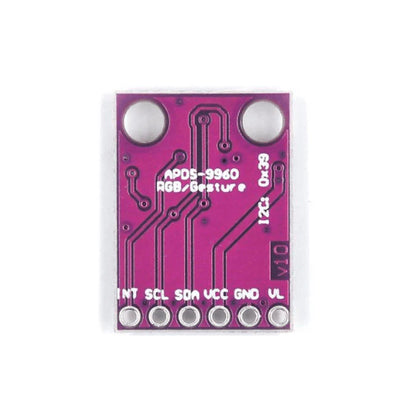

The APDS-9960 RGB and Gesture Sensor is a compact breakout board that enables ambient light sensing, RGB color measurement, proximity detection, and touchless gesture recognition. Using simple hand swipes, you can control robots, microcontrollers, and embedded systems with ease.

With built-in UV & IR blocking filters, four directional photodiodes, and an I2C interface, it ensures accurate and reliable detection within a range of 4–8 inches (10–20 cm). Perfect for Arduino, Raspberry Pi, and other development boards.

What's in the Box?

1 x APDS 9960 RGB And Gesture Sensor
1 x 6 Pin Male Header

Shipping & Return

• Order Processing typically takes 𝟐𝟒-𝟒𝟖 𝐁𝐮𝐬𝐢𝐧𝐞𝐬𝐬 𝐇𝐨𝐮𝐫𝐬, during which orders are picked, packed, and prepared for shipment.
• 𝟕 𝐝𝐚𝐲𝐬 𝐆𝐮𝐚𝐫𝐚𝐧𝐭𝐞𝐞𝐝 𝐑𝐞𝐩𝐥𝐚𝐜𝐞𝐦𝐞𝐧𝐭 from the date of delivery.
• 𝐅𝐫𝐞𝐞 𝐃𝐞𝐥𝐢𝐯𝐞𝐫𝐲 on orders above ₹𝟏𝟒𝟗𝟗/-

View full details

Technical Specification

APDS 9960 RGB And Gesture Sensor

Multi-Function Optical Sensing

The APDS9960 combines ambient light, RGB color, proximity, and gesture sensing in one compact optical module. It enables touchless control and accurate environmental detection for interactive electronics projects.

Advanced Gesture Detection

Equipped with four directional photodiodes and a 32-dataset FIFO buffer, the sensor accurately detects swipe gestures in all directions. It operates within a 4–8 inch (10–20 cm) range, making it ideal for touch-free control applications.

High-Sensitivity RGB

Features UV and IR blocking filters, programmable gain, and adjustable integration time for accurate light and color measurement. Its high sensitivity allows reliable operation even behind dark or tinted glass.

I2C Fast-Mode Interface

Supports I2C Fast Mode up to 400 kHz with a default address of 0x39 for reliable communication. Features dedicated pins and interrupt output for easy, low-power integration at 3.3V operation.

No Reason to Delay, Buy from iemrobotics.com

Why You Should Buy APDS 9960 RGB And Gesture Sensor

Touchless Control Convenience

Enables intuitive gesture recognition and hand swipe detection, eliminating mechanical switches in Arduino and IoT projects.

All-in-One Smart Sensor Module

Integrates RGB color sensor, ambient light sensor, proximity sensor, and gesture sensor in a compact I2C breakout module.

High Accuracy & Reliable Performance

Features UV/IR filtering, directional photodiodes, and programmable gain for precise color detection and motion sensing.

Easy Arduino & Microcontroller Integration

Supports I2C communication (0x39 address) with interrupt output, ideal for Raspberry Pi, Arduino, robotics, and embedded systems.
